5T Rear Wheel Steering Rough Terrain Forklift

Model No.:GZR50

Rated Capacity:5000kg

Max. Lift Height:3000mm

Overall Size(L/W/H):3900/2080/2650mm

Product Details

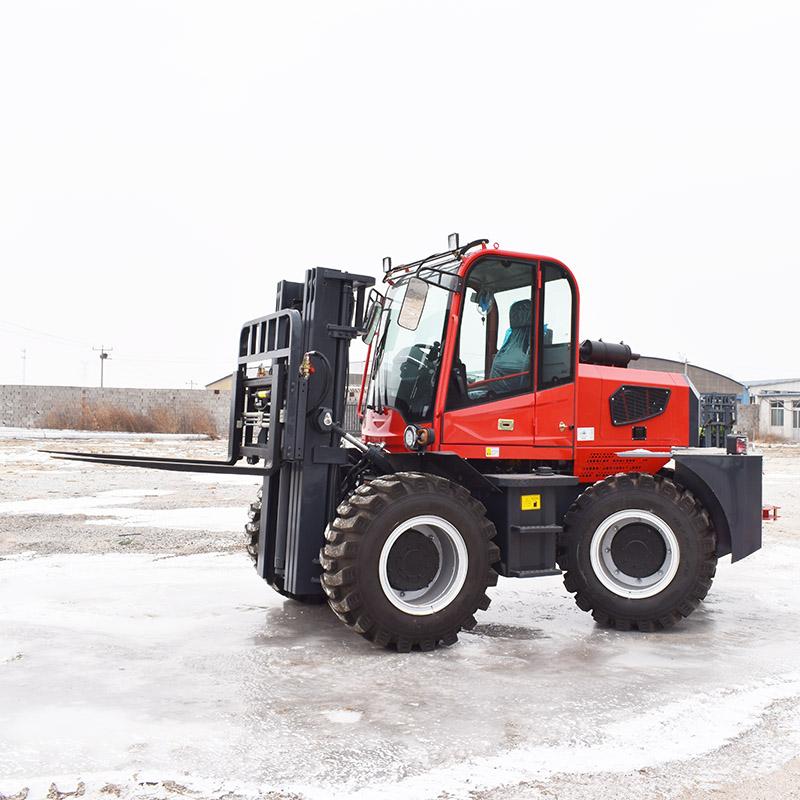

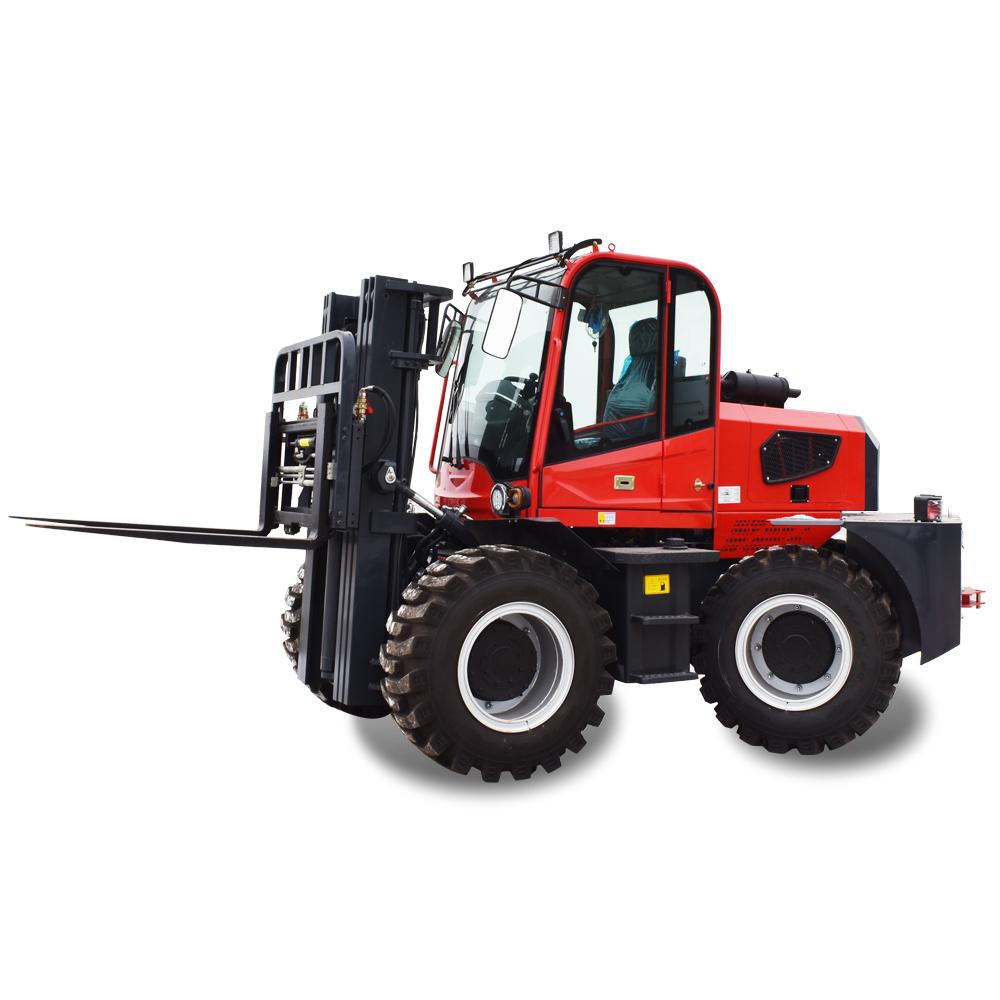

5T Rear Wheel Steering Rough Terrain Forklift

The rear wheel steering rough terrain forklift is also known as rear articulated off-road forklift. It is a uniquely designed vehicle with its articulation point situated at the rear, employing rear-wheel steering. The rear articulated off-road forklift utilizes rear-wheel steering, achieved by placing the articulation point at the rear. This design enhances flexibility in the steering of the rear wheels, contributing to outstanding maneuverability, especially in situations requiring high stability during material handling operations.

Features:

Efficient Handling for All-Round Adaptation: The 5-ton rear-steer off-road forklift, with its efficient handling capacity and all-round adaptability, excels in various settings such as construction, manufacturing, and other extensive applications.

Exceptional Stability Across Varied Terrains: The 5-ton off-road forklift, featuring exceptional stability, adapts to diverse terrains, ensuring reliable control under different working conditions.

Standard:

Model GZR50
Description 5T Rear wheel Steering Rough Terrain Forklift
Configuration Engine YN4102/78KW (Supercharged)
Tyre Cushion Tyre 16/70-24
Drive Diesel
Driveline 4 Wheel Drive
Specification Overall Size(L/W/H) 3900/2080/2650mm
Weight 5700kg
Minimum Ground Clearance 330mm
Mast Lowered Height 2330mm
Mast Steel Width 180mm
Fork Length 1220mm
Performance Data Rated Capacity 5000kg
Max. Lift Height 3000mm
Tilt of Mast Fork Carriage Forward 12°
Turning Radius 3900mm
Gradeability <35°

Tips:
1. The above data is the standard configuration parameters, other requirements, please contact the sales.
2. With the update of our forklift, the configuration and parameters will be changed without notice.


Options:

Forklift Mast 4m Forklift Mast(two stage ) 4.5m Forklift Mast(two stage )
4.5m Forklift Mast(Three stage ) 5m Forklift Mast(Three stage )
6m Forklift Mast(Three stage )
Forklift Attachments Side shifters Tilting fork
1.8m Fork Extensions Hanging Type Tilting bucket
Tilting clamp bucket with sleeve
Drum clamp Fork Positioners with Side shifters
Others Heater Air conditioner

For more options, please contact with our sales.
